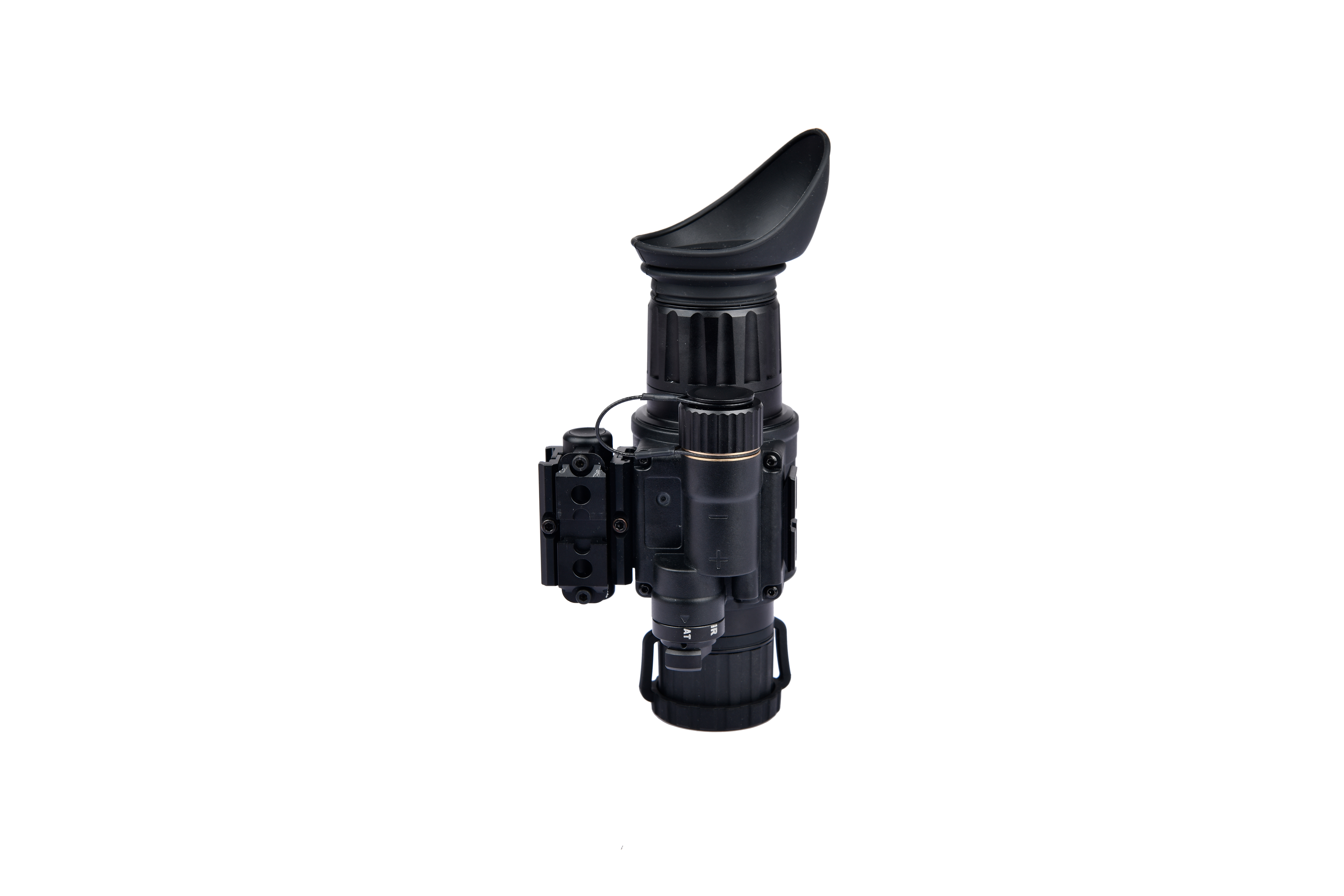

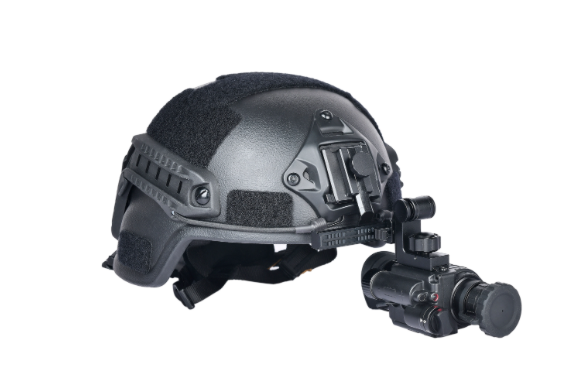

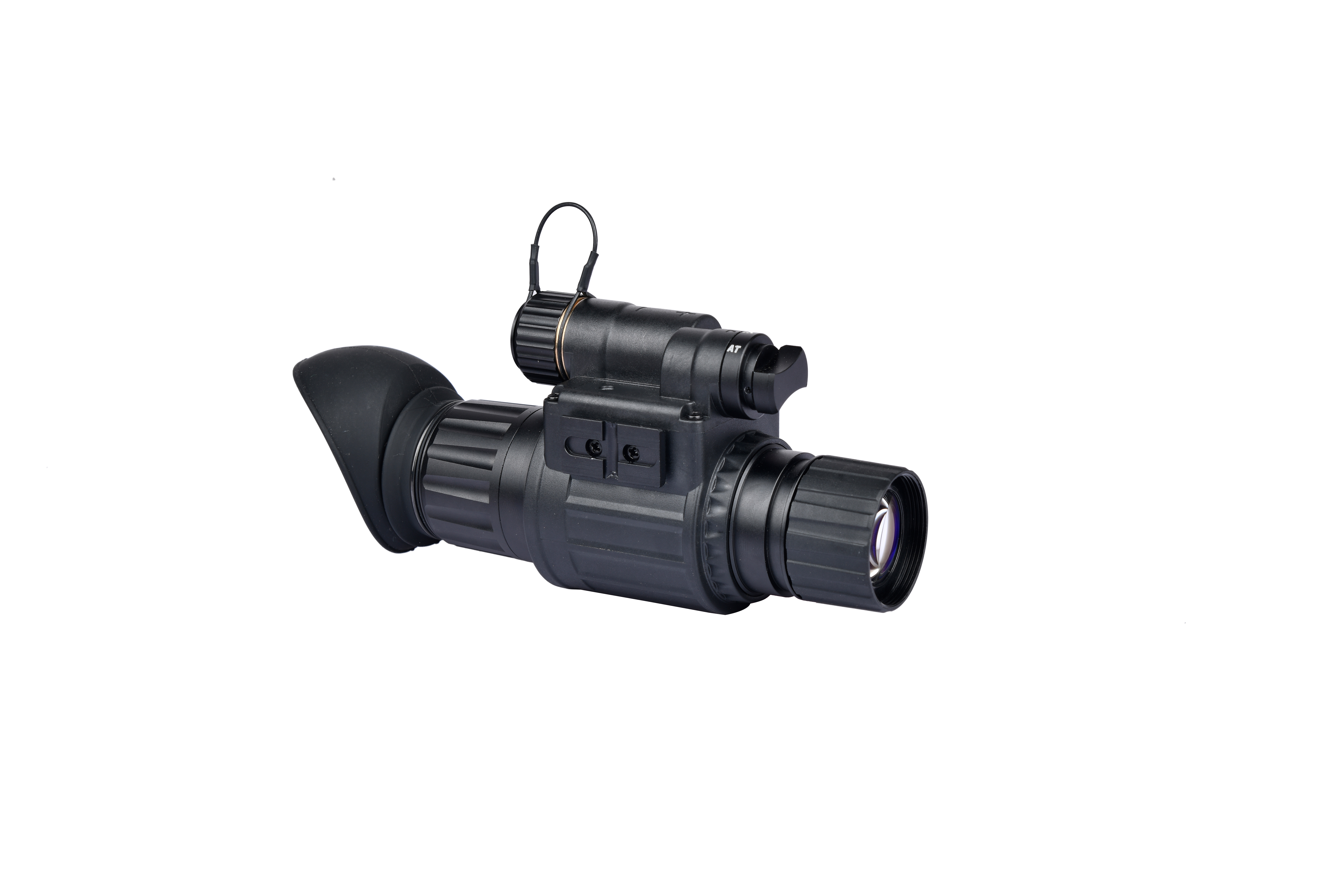

Helmet mount Night Vision Monocular Goggles
HY-E831 is based on the latest ophotoelectric technology research and development of new products,，The instrument adopts the high-performance generation ii/three image intensifier, with excellent performance, small volume and weight ,light, clear imaging, simple operation, high cost performance, and by replacing the objective lens (or connecting multiplier lens). It can change magnification and so on.
|
Model |
HY-E831 |
|
IIT |
Equal to XR-5, P43 or P45 as optional |
|
Magnification |
1x |
|
Resolution ( LP/mm) |
60-72 |
|
S/N （dB） |
22-25 |
|
FOM |
700-1600 |
|
MTTF（hrs） |
10,000 |
|
FOV（degree） |
42+/-3 |
|
Detection distance（M） |
200-300 |
|
Reticle |
Internal（optional） |
|
Diopter range |
+5/-5 |
|
Lens system |
F1.2, 25mm |
|
Coating |
Multilayer broadband coating |
|
Range of focus（M） |
0.25--∞ |
|
Auto anti strong light |
High sensitivity broadband detection |
|
Rollover detection |
Solid non-contact automatic detection |
|
Dimensions（mm） |
115x69x54(w/o eyeshade) |
|
Material |
Aviation aluminum |
|
Weight（no battery） |
300g |
|
Power supply |
2.6-4.2V |
|
Battery type |
CR123(A)x1 |
|
Battery life（H） |
80(IR OFF) 40(IR ON) |
|
Operating Temperature （℃） |
-40/+50 |
|
Relative Humidity |
5%-98% |
|
Environment rating |
IP65（IP67 optional） |
