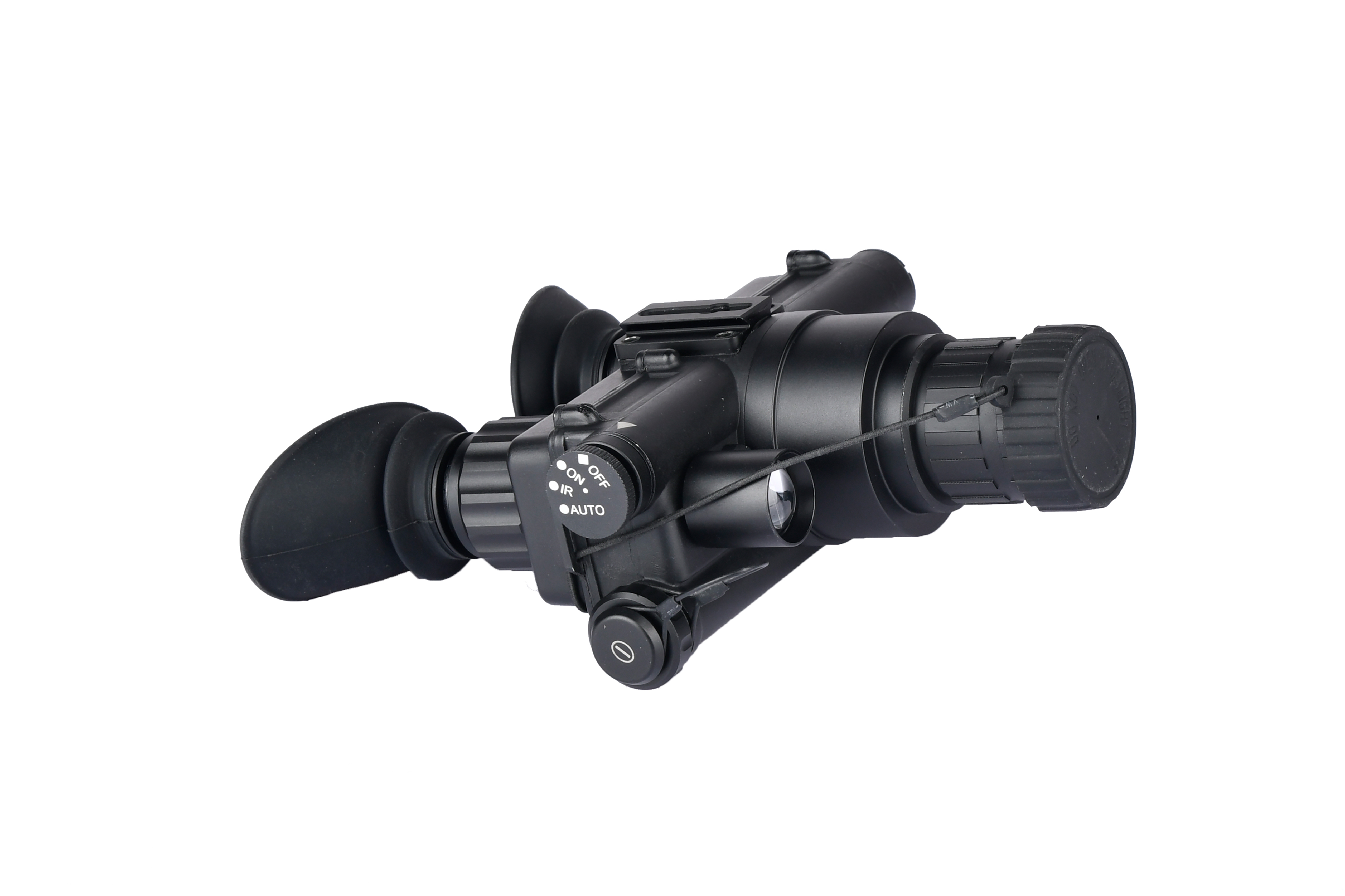

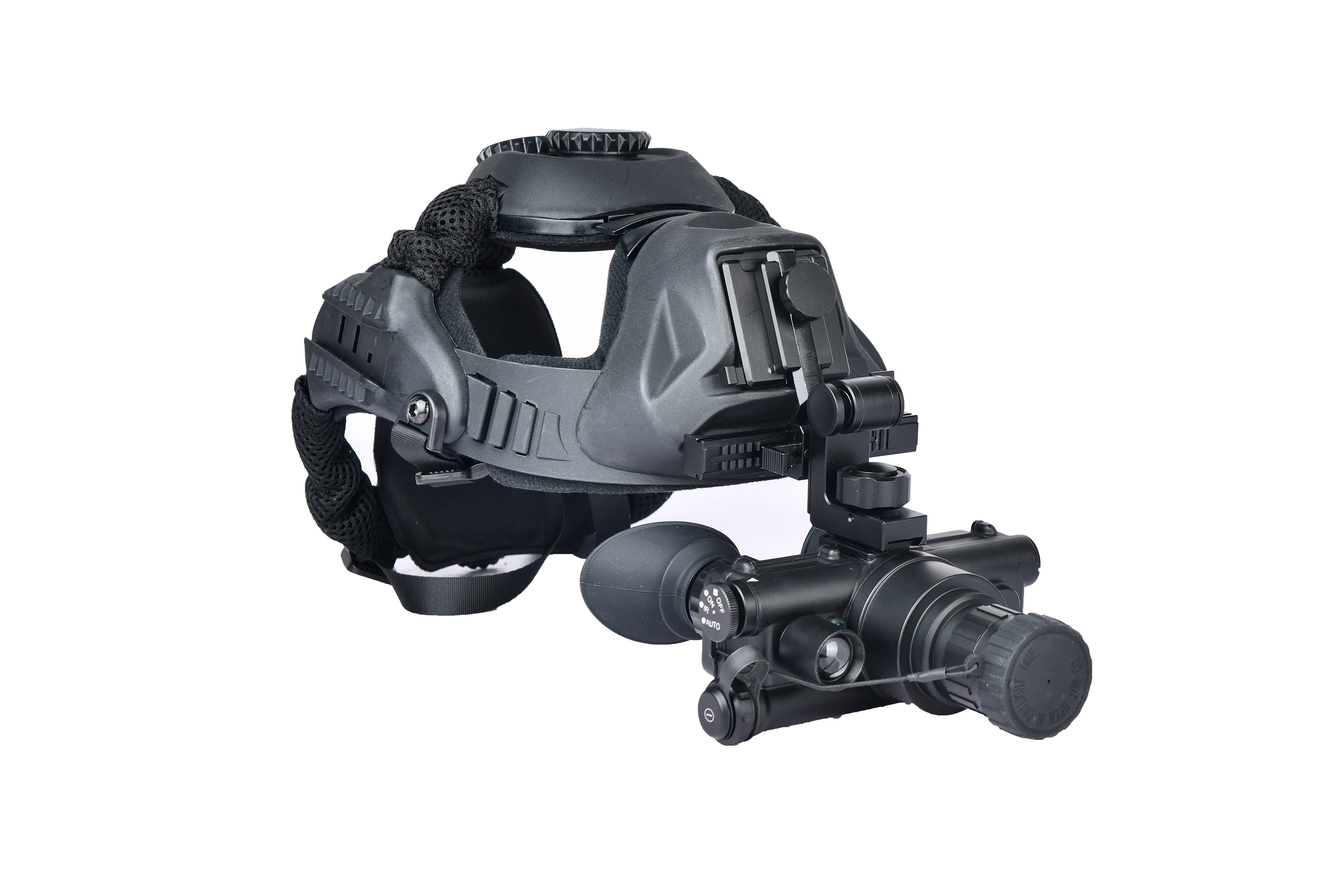

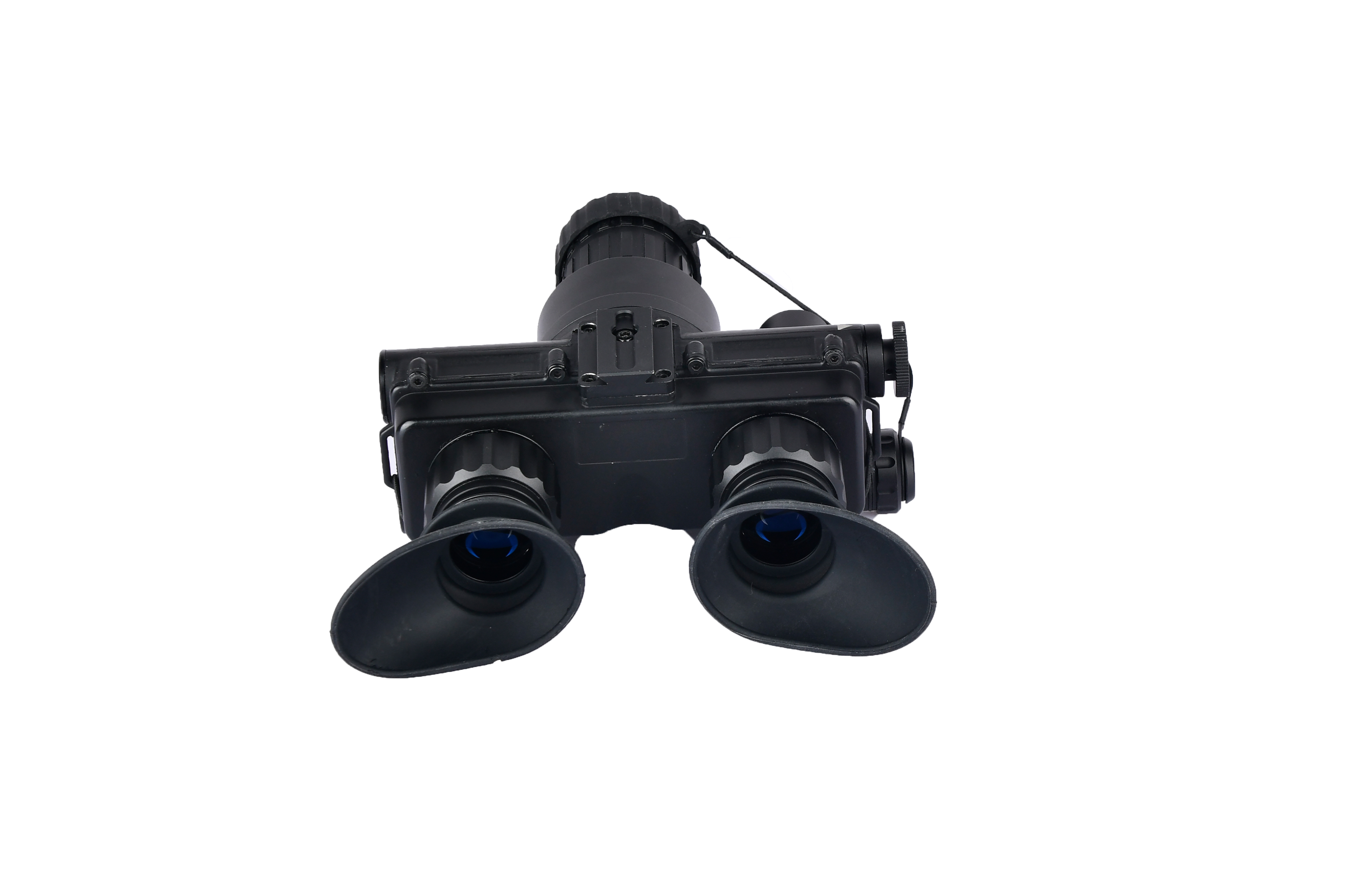

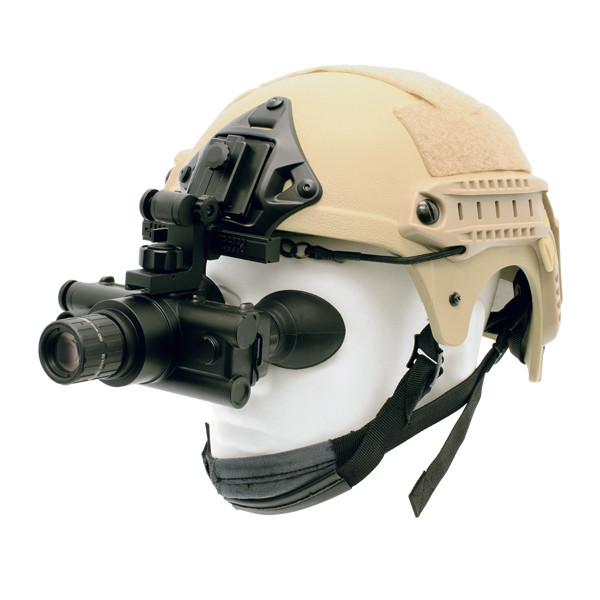

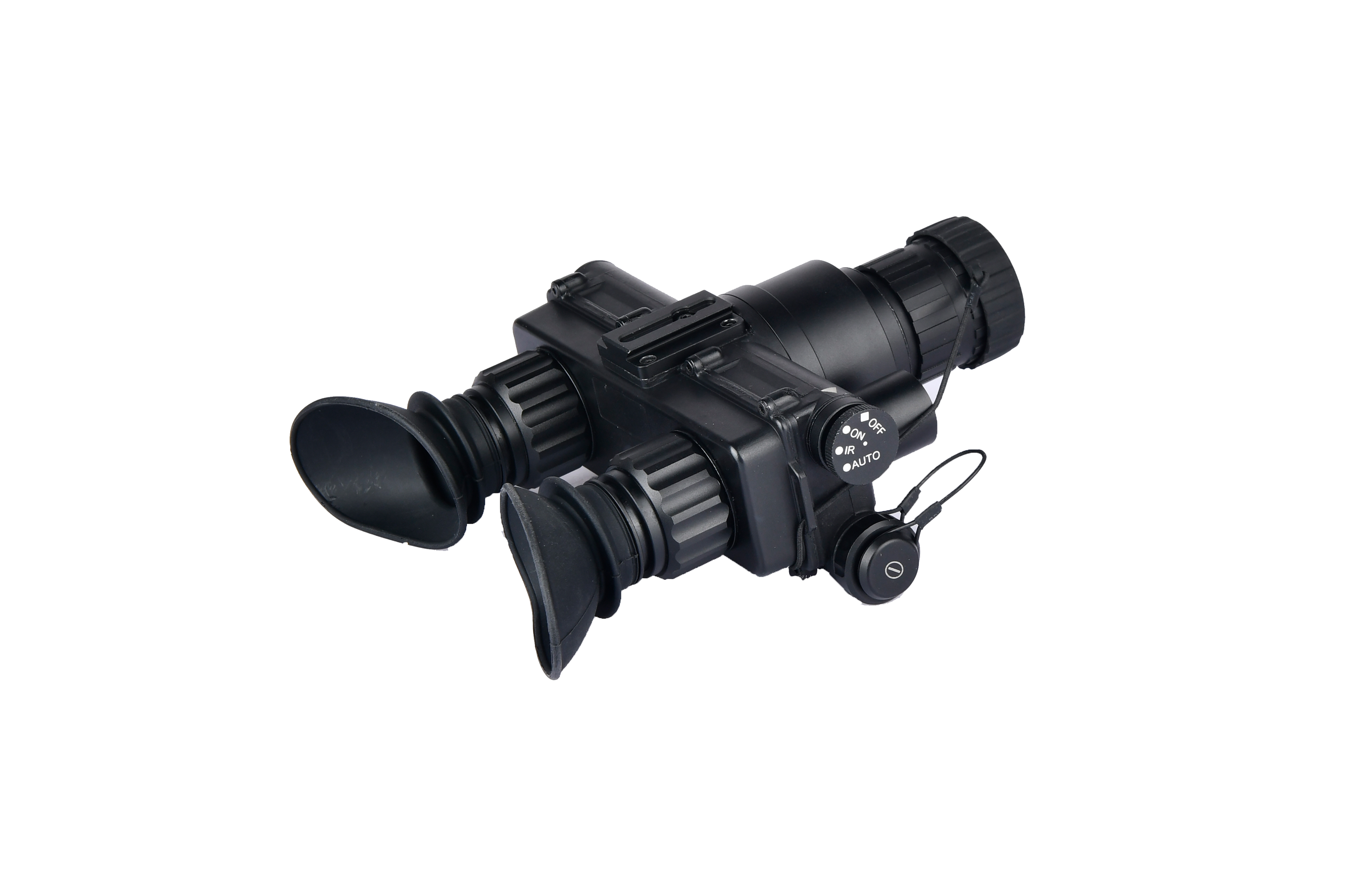

Helmet mounted Night Vision Goggles HY-7
HY-7 is a new product developed based on the latest technology. Small size, light weight, clear imaging, adjustable eye distance, and changeable magnification by replacing the
objective lens (or connecting A focal lens). After adding the thermal imaging module,The thermal
fusion not only observe the surrounding environment in a dark environment, but also quickly
identify living targets, greatly improving the night recognition ability.
objective lens (or connecting A focal lens). After adding the thermal imaging module,The thermal
fusion not only observe the surrounding environment in a dark environment, but also quickly
identify living targets, greatly improving the night recognition ability.
|
Model |
HY-7 |
HY-7S（Thermal fusion） |
|
IIT |
Gen 2+/Gen3(optional) |
Gen 2+/Gen3(optional) |
|
Magnification |
1x |
1x |
|
FOV(°) |
42+/-3 |
42+/-3 |
|
Adjustable range of eye distance |
65+/-5 |
65+/-5 |
|
Diopter |
+/-5 |
+/-5 |
|
Total Darkness IR System |
YES |
YES |
|
Automatic Brightness Control |
YES |
YES |
|
Bright Light Cut-off |
YES |
YES |
|
Infrared Illuminator |
Built-in(850nm 20mW) |
Built-in(850nm 20mW) |
|
IR Indicator |
YES |
YES |
|
Low Battery Indicator |
YES |
YES |
|
Material |
Aviation aluminum |
Aviation aluminum |
|
Power supply(v) |
2.6-4.2V |
2.6-4.2V |
|
Battery type(v) |
Double A battery(2) |
Double A battery (2)+ external battery pack |
|
Operating Temperature（℃） |
-40/+50 |
-40/+50 |
|
Relative humidity |
5%-98% |
5%-98% |
|
Waterproof |
IP65（IP67 Optional） |
IP65（IP67 Optional） |
|
Dimensions (mm) (without eye mask) |
130x130x56 |
115x127x69 |
|
Weight(g) |
410g(finished) |
468g(finished) |
