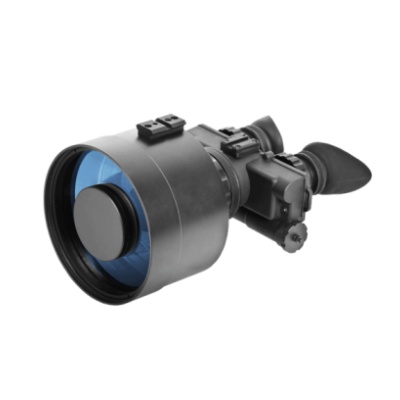

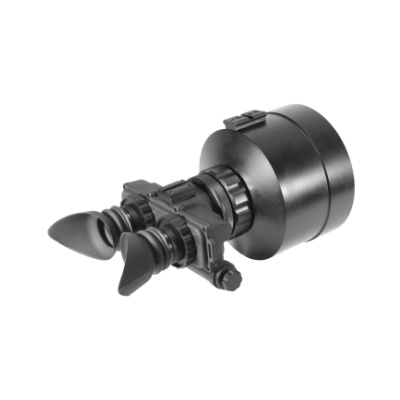

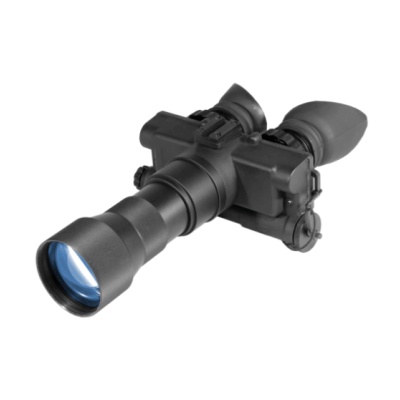

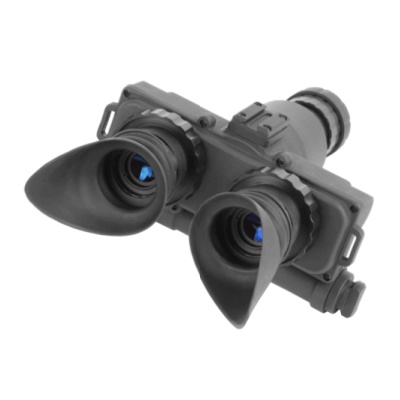

Night Vision Binoculars/Helmet mount Night Vision Goggles HY-PVS7I
HY-PVS7I is a kind of night vision goggles which can be viewed by two eyes and can be mounted with helmet,small in size,light in weight. Magnification can be changed by replacing different objective lens, 1x and 3x,5x and 8x are available.
It is mainly used for military observation,sea defence,frontier reconnaissance,surveillance, suppress smuggling, drug smuggling investigation and vehicles and aircraft maintenance under dark condition etc.).
It is mainly used for military observation,sea defence,frontier reconnaissance,surveillance, suppress smuggling, drug smuggling investigation and vehicles and aircraft maintenance under dark condition etc.).
|
Model |
HY-PVS7I |
|
Generation |
Gen 2+/Gen3(optional) |
|
Magnification |
1x |
|
Resolution ( lp/mm) |
60-64 |
|
S/N （dB） |
23-25 |
|
Luminous sensitivity（uA/lm） |
600-1000 |
|
FOV(°) |
40+/-2 |
|
Diopter |
-5 to +5 |
|
Capability |
Flip-Up- On-Off |
|
Automatic Brightness Control |
YES |
|
Bright Light Cut-off |
YES |
|
Infrared Illuminator |
Built-in(850nm 10mW) |
|
IR Indicator |
YES |
|
Low Battery Indicator |
YES |
|
Optical distortion |
<0.5% |
|
Pupil distance（mm） |
15 |
|
Battery Voltage |
2.4-4.2V |
|
Battery type |
CR123(A)x1 |
|
Temperature range（℃） |
-40/+55 |
|
Humidity range |
5%-98% |
|
Waterproof |
IP65（IP67 optional） |
|
Dimensions（mm） |
183x132x58 |
|
Weight（no battery） |
500g(finished) |
